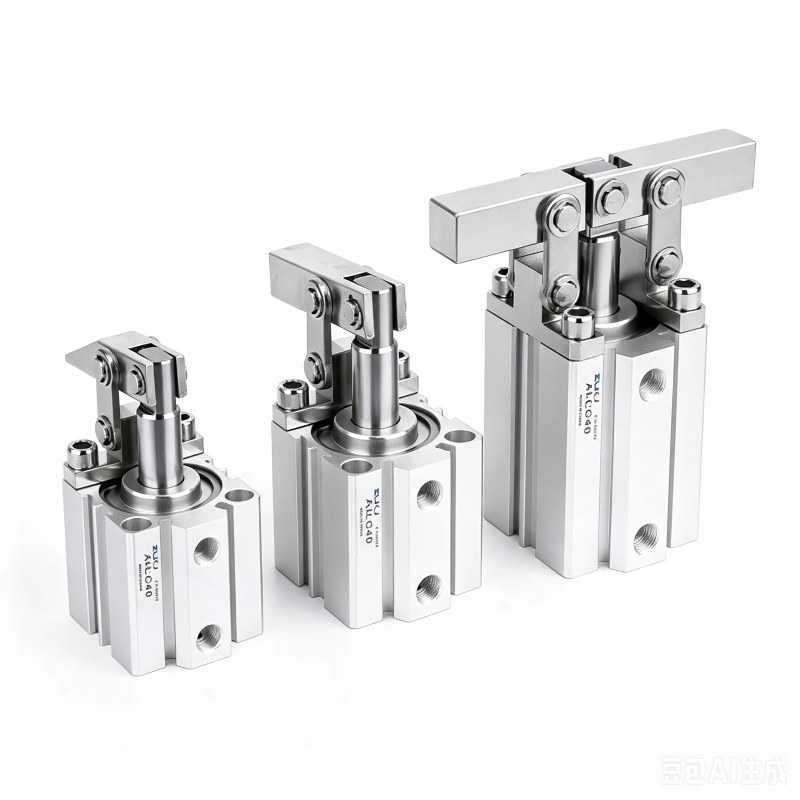

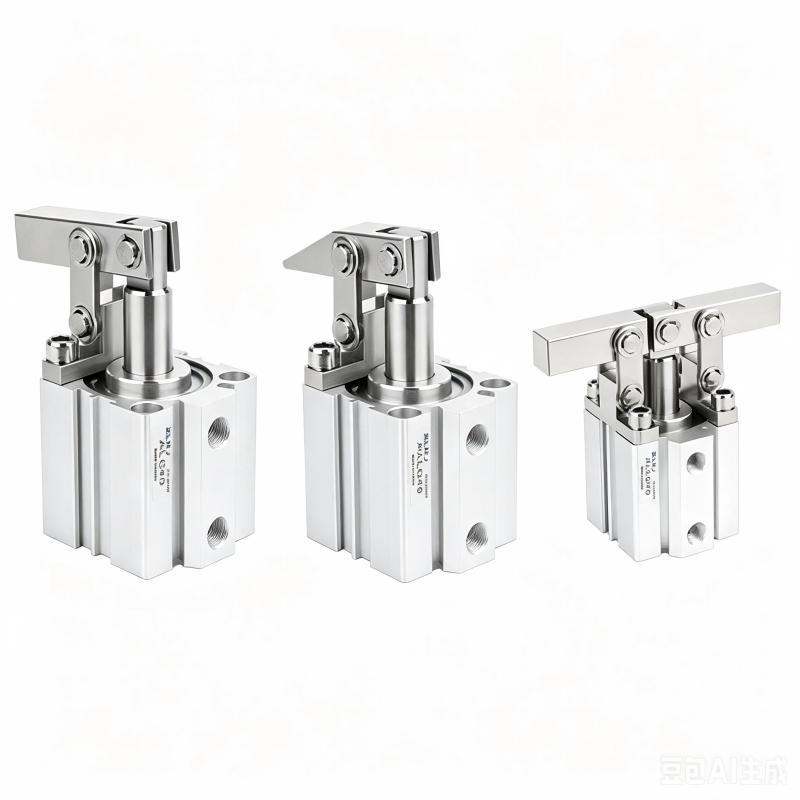

Lever-Type Cylinder: Big Clamping Force in a Small Body
Sometimes you need to hold a part down, not push it across the table. That’s where a lever-type cylinder shines. It converts air pressure into a rotating arm motion, pressing a pad or clamp onto the workpiece. Because the arm swings in an arc, the cylinder stays low-profile and fits into tight fixtures. You’ll see them on welding jigs, machining tables, and assembly stations—anywhere a firm, repeatable hold matters.
How the Rotary Action Works

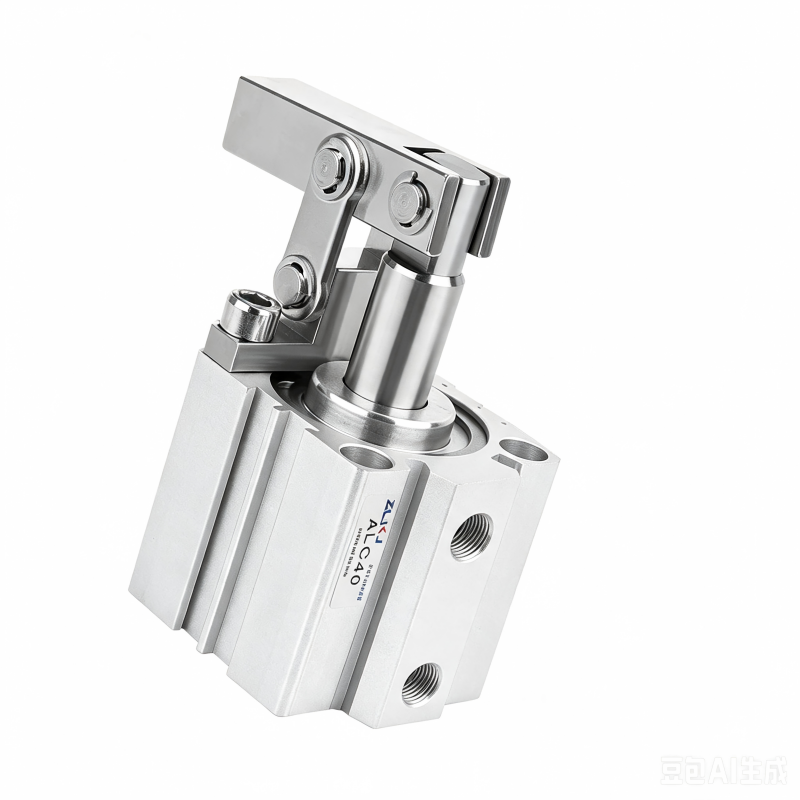

So how does a lever-type cylinder actually clamp? Compressed air drives a piston inside the body, and that motion turns a lever arm through a set angle. The arm presses down on the part, locking it in place. When the valve switches, air moves to the other side and the arm lifts. Many models offer an adjustable arm position, so you can set the clamp point to match your part height. In addition, some units include a built-in check valve that holds pressure if air drops, which keeps the clamp engaged during a power loss.
Where It Earns Its Keep
You’ll find a lever-type cylinders in plenty of hands-on setups. Think welding fixtures that need to hold metal sheets flat. Or CNC tables where a low clamp profile keeps the tool path clear. They also work well in assembly jigs and inspection stations that grip small parts. Because the arm swings instead of pushing straight up, the cylinder takes up less vertical space. That means you can build a compact fixture without the clamp getting in the way.
Why It’s a Smart Pick
In short, a lever-type cylinders delivers strong clamping in a small package. It installs easily, holds parts firmly, and fits into tight spaces. If your project needs a reliable hold-down solution, this cylinder type is worth a close look. Talk to a supplier to match the bore, arm style, and mounting to your job.
