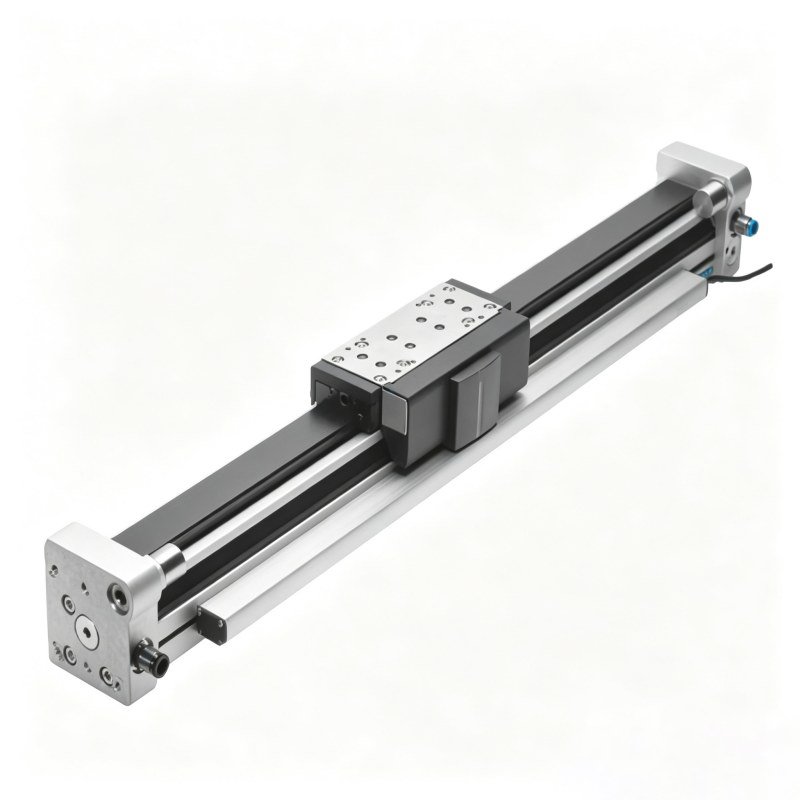

Why a DGC Rodless Cylinder Fits Where Others Can’t
If your workspace is tight, you know standard cylinders can be a pain. A DGC rodless cylinder solves that problem. Unlike traditional rod-style actuators, it uses a carriage that moves along the barrel itself. As a result, it delivers the same stroke length in about half the space. That makes it a go-to choice for compact automation setups.
Key Features That Drive Performance
This cylinder design typically includes a magnetic piston that couples to an external carriage. That means no rod extends out during operation, so you avoid bending and buckling issues. Many models offer stroke lengths up to several meters, depending on the series. In addition, built-in cushioning at both ends reduces noise and impact. You also get options for position sensing, which helps with precise control. Consequently, the DGC rodless cylinders works well in applications like pick-and-place, sliding doors, and material handling.
Where It Shines in Real Applications
You will often find this actuator in packaging machinery, assembly lines, and automated storage systems. Because it handles long strokes without taking up extra room, it fits neatly into vertical or horizontal setups. Moreover, the guided carriage version supports side loads, so you can mount tools directly on it. That eliminates the need for extra guide rails. For many engineers, the DGC rodless cylinders becomes a simple way to boost efficiency without redesigning the whole frame.
Installation and Maintenance Tips
Mount the cylinder securely on a flat surface to avoid misalignment. Keep the barrel clean and check the sealing band regularly for wear. Most units use a stainless steel band that protects the internal mechanism. Also, lubricate with the recommended air supply quality—usually filtered and dried air. If you notice jerky motion, inspect the carriage bearings and replace them as needed. With proper care, a DGC rodless cylinder delivers long service life with minimal downtime.
Bottom Line
A DGC rodless cylinder gives you compact power and reliable linear motion. It saves space, handles long strokes, and fits easily into modern automation. So, if you are tight on room but need strong performance, this actuator deserves a closer look.
