DZF Flat Parallel Air Cylinders: Big Force in a Slim Body
Not every job gives you room for a full-size cylinder. Fixtures get crowded, machine frames stay tight, and panels leave little space to spare. That’s where a DZF flat parallel air cylinder earns its keep. Its flattened body saves room while the parallel design keeps the rod moving straight. That combo lets you clamp, push, or lift without redesigning the whole setup. For compact fixtures and space-starved machines, this cylinder type is a smart fit.
How the Flat Design Saves Space

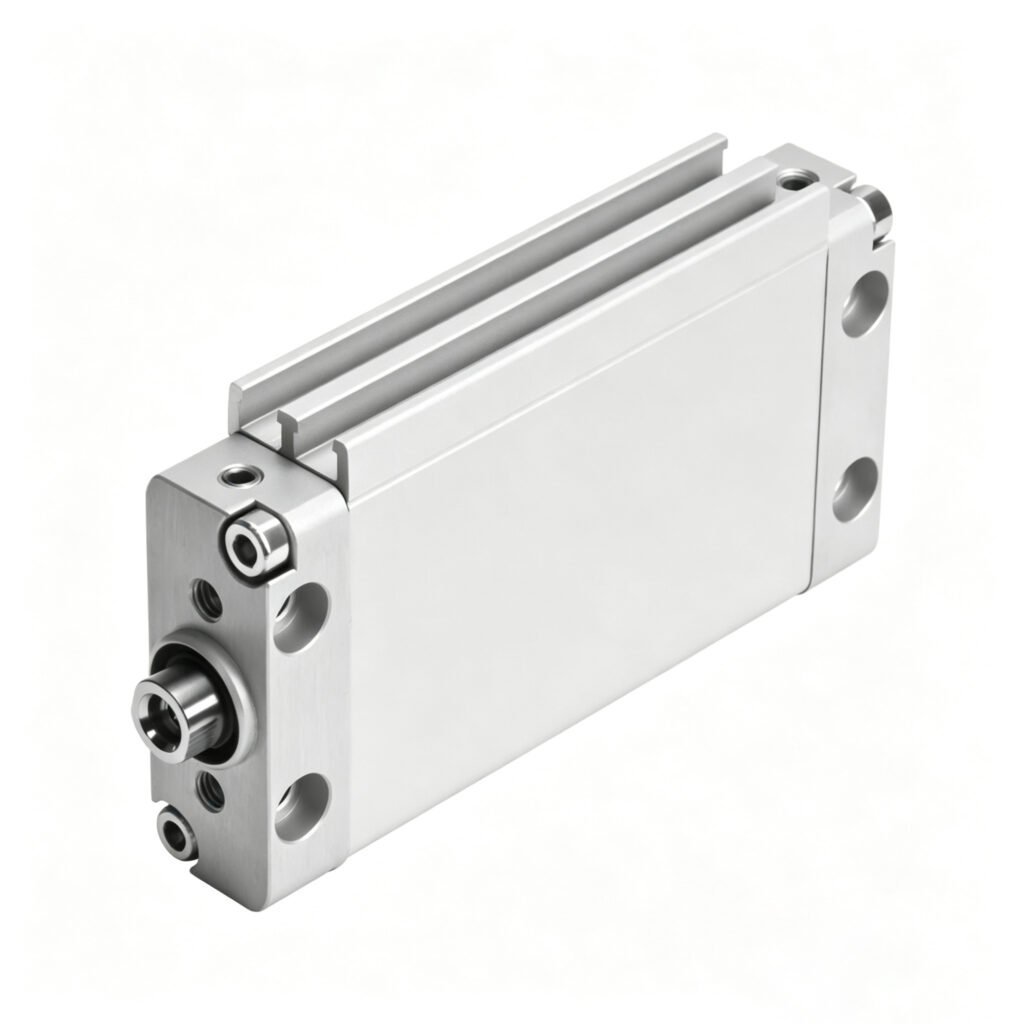

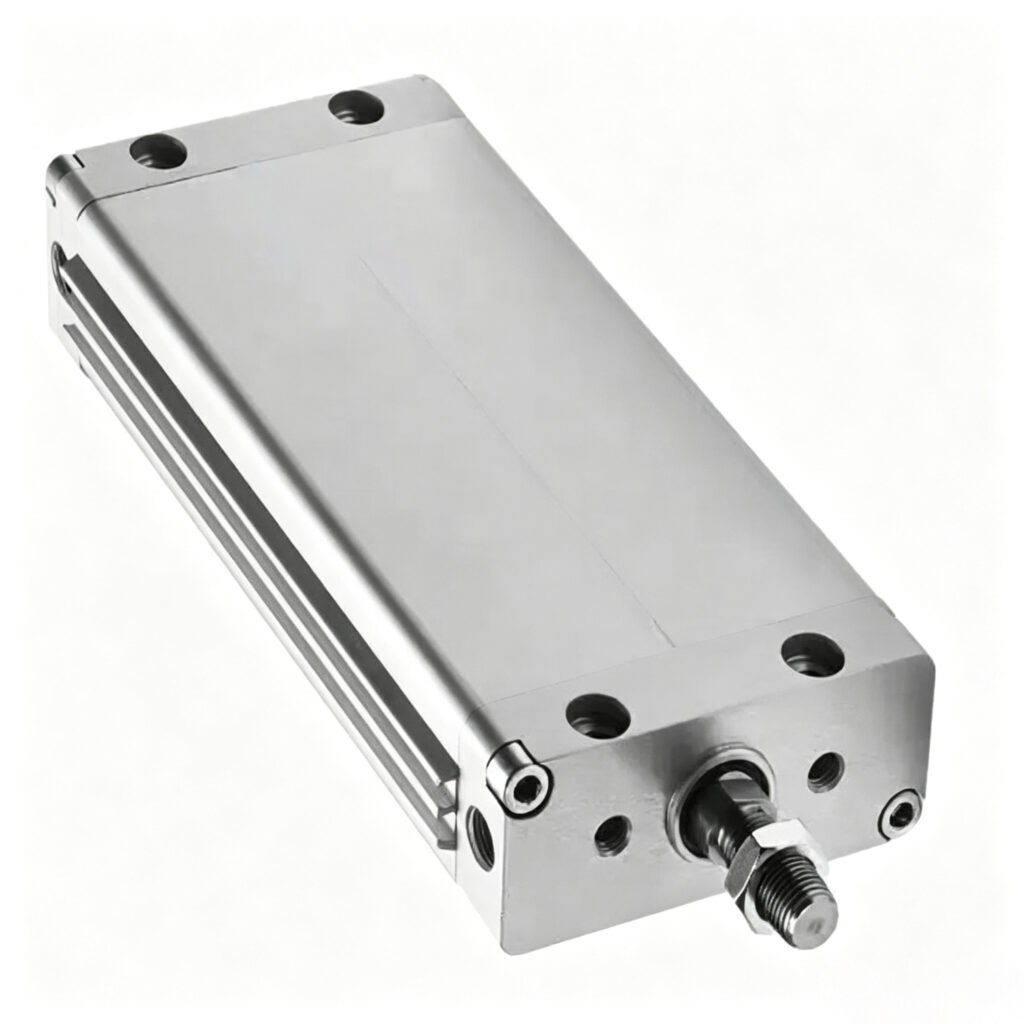

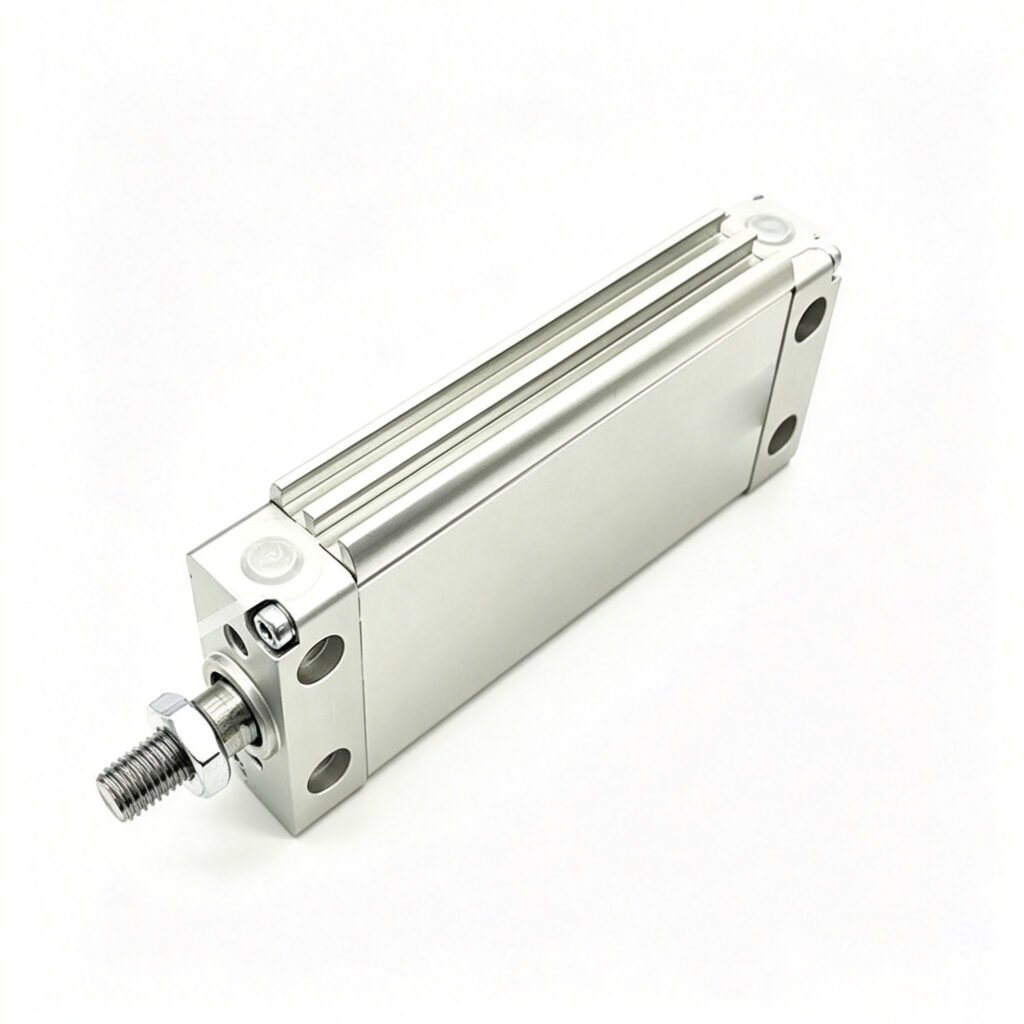

So what makes a DZF flat parallel air cylinder a solid pick? Start with the shape. The body uses a low-profile, rectangular housing instead of a round barrel. That lets you mount it flat against a plate or inside a narrow frame. The parallel rod design also keeps the tooling aligned, so the load doesn’t twist or bind. In addition, these cylinders often come in single-acting or double-acting versions, so you can match the motion to your task. Many models also offer magnetic pistons for position sensing.
Where It Earns Its Keep
You’ll find a DZF flat parallel air cylinder in plenty of practical spots. Think clamping fixtures that hold small parts during machining. Or ejector units that push finished goods off a conveyor. It also works well in packaging lines, electronics assembly, and inspection stations where every millimeter counts. Because the body stays compact, you can fit several cylinders into one tight area. And since they run on standard shop air, you won’t need special power sources or complex wiring.
Why It’s a Smart Choice
In short, a DZF flat parallel air cylinders gives you reliable force in a space-saving package. It installs easily, keeps tooling aligned, and fits into tight spots. If your project needs compact motion in a crowded setup, this cylinder type is worth a close look. Talk to a supplier to match the bore, stroke, and mounting style to your job.
