10 commonly used cylinders (3)

Share This Post

5. Guide rod cylinder

Guide rod cylinder is divided into linear bearing type and copper jacket type, linear bearing type is suitable for pushing action, suitable for low friction sports occasions, copper jacket type is suitable for radial load, high load occasions. Guide rod cylinder features: compact structure, can effectively save installation space, its own guiding function, can withstand a certain horizontal load, a variety of installation methods. Can be used for blocking, feeding, pushing, stamping, clamping and other occasions.

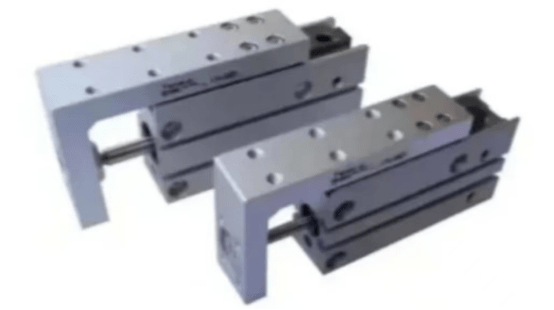

6. Slide cylinder
The cylinder of the slide table is guided by the cross ball guide rail, which has little friction and can achieve smooth movement without loosening.
Characteristics of slide cylinder:
one Compact structure, save installation space;
2. High guiding accuracy, anti-torque, strong load capacity;
3. The price is relatively expensive.
